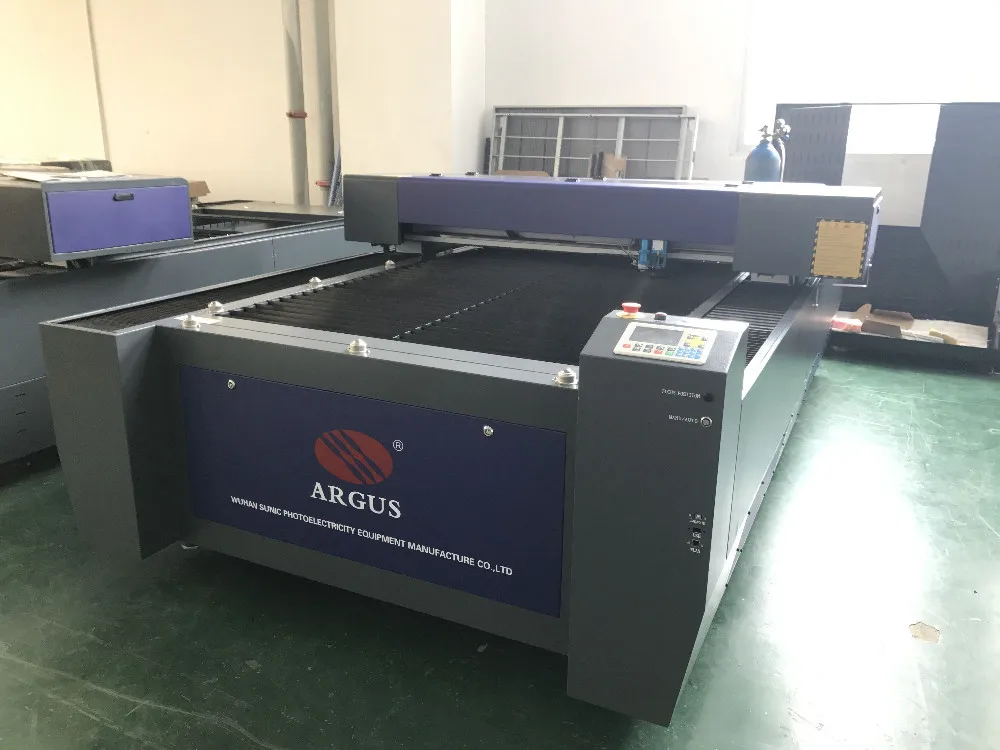

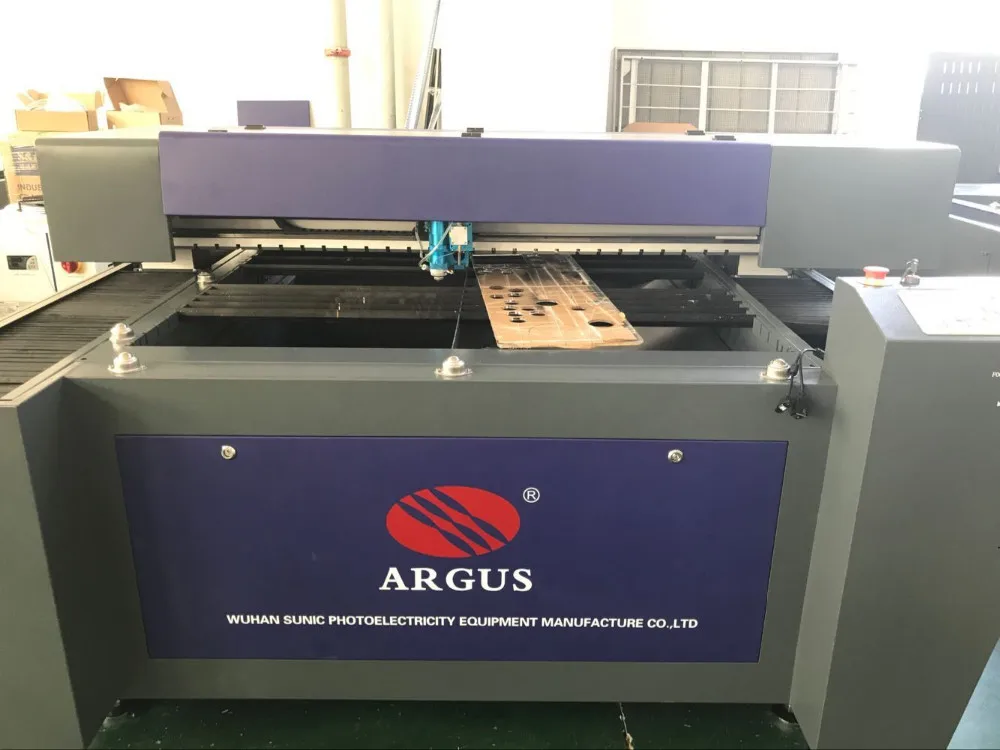

Product: CO2 Laser Cutting Machine SCU1325
Packing: Standard Export Wooden Case with Steel Belt
Packing Dimensions: 3550x2050x1330mm
Within 7 working days
Equipment Performance of Co2 Laser Cutting Machine SCU1325: 1) Designed for cutting large size nonmetal materials. Sufficient stiffness machine body with 1300*2500mm worktable. 2) Aluminum alloy crossbeam&laser head, import focus lens. Stepper motor&belt transmission, laser head height adjustable,RDCAM control system. 3) Module steel frame structure to reduce the mechanical trouble effectively. 4) Taiwan HIWIN liner guide rail, routeway feeding. 5) Patent Design is applied in the machine, easy operation with the control panel of LCD screen work normally. 6) The machine can cut the work piece smoothly and accurately by the big worktable. 7) Adopt imported USA laser optic lens. The lens of less energy loss, high reflectivity, strong focusing and durable. Optical less losses in the transmission process to avoid the problems of large attenuation of laser cutting power.
100W, 130W, 150W, 280W, 300W
Stepping Motor Drive/Servo Motor Drive
Belt Transmission/Ball Screw Transmission
Max cutting Speed
Accuracy of Repeated Orientation
Automatic Water Cooling System
Standard Printer Port and USB Port
LCD Panel showing current file name, total working time, laser power, cutting time, file(s) loaded in the memory buffer, setup and menus
Huff Protection, Hydraulic Pressure Protection
Aluminum Bar strip worktable
Up & Down Table
15cm adjustable, or customized
PLT, BMP, DXF, DST, T100, etc
Rotary Device, Honeycomb Worktable, Gear Ratio Structure, Ball Screw Transmission, Servo Motor Drive System, Automatic Focus Laser Head
1. Machine Structure
Adopt Integral Casting Molding technology, improve the stiffness of machine body, Ensure the stability of crossbeam when high speedworking. The steel plate used in this machine adopts tempering and vibration aging to eliminate stress, support long lifespan
2. Adjustment of Guide Rail
We choose Taiwan HIWIN liner guide rail, in order to ensure the precision of crossbeam motion. Our engineer adjust the rail direction by using the interferometer, to keep the degree of parallel, make sure the deviation under control within 0.1mm. That makes the motion of X,Y axis smoothly and accurately, improve the working accuracy.
3. Steel Wire Belt
X,Y axis motion system adopts stepper motor-belt transmission, this new type SCU1325 use steel wire belt, contains internal steel wire. Compare with ordinary transmission belt, this kind of belt has higher stiffness, no deformation.
4. Integrated Aluminum Crossbeam
New design crossbeam, heavier than the old type. Main structure made by integral casting molding, not welding by aluminum plates. Improve the stability and motion inertia of crossbeam. Ensure the cutting accuracy.
5.Higher Power Stepper Motor
High quality stepping motor, large output torque, low temperature rise, high reliability characteristics. With internal damping characteristics, good stable running, no obvious oscillation.

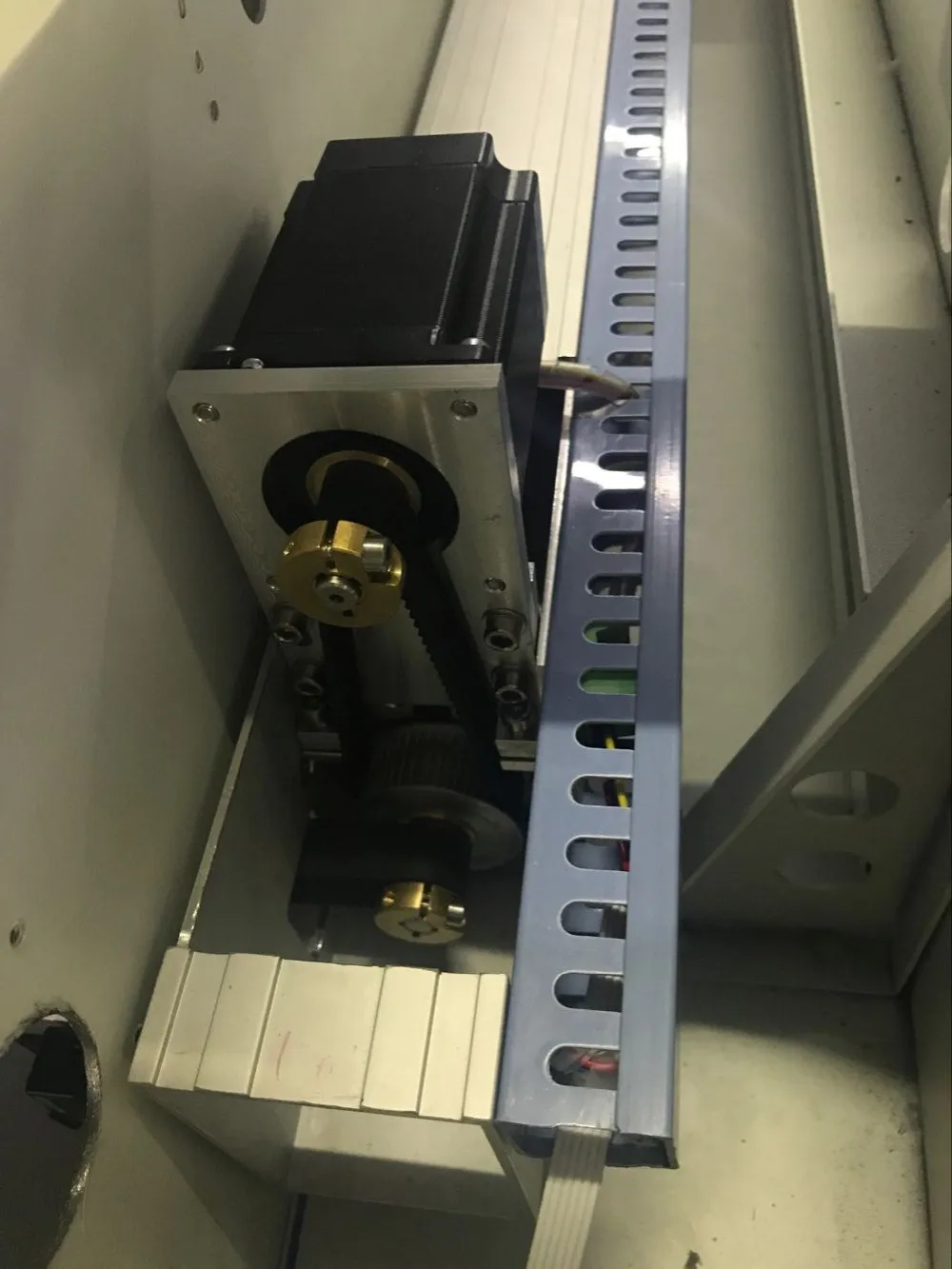

6. New Design Ratio System
The ratio system which we designed for X axis motor adopts the “Ω” shaped transmission design, configured three additional driving wheel to ensure the high ratio to prevent the slipping of belt Improve the accuracy of X axis motion.

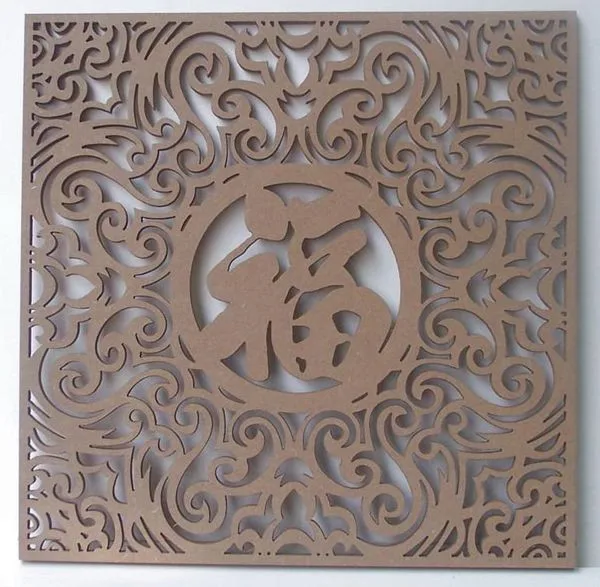

Plywood Engraving & Cutting Machine
Rubber Engraving & Cutting
Paper Engraving & Cutting
Galvanized Sheet Cutting
Carbon Steel Cutting
Stainless Steel Cutting
Applicable Materials of Co2 Laser Cutting Machine SCU1325: 1) Metal Materials: Carbon Steel, Silicon Steel, Stainless Steel, Titanium, Galvanized Sheet, Pickling Plate, Galvanized Sheet and other metal materials. 2) Non-metal Materials: ﹡Handcraft industry. Plywood,Marble,Density board,Gifts,Trophy, Marks, Key chains ﹡Furniture, Wood, Bamboo, MDF, Home textile, Seat Cushions, Ceramic ﹡Advertising industry, Advertising plate, Acrylic, Plastic, PVC, Signs ﹡Garment, Jeans, Leather, Chemical leather, Shoes material ﹡Decoration, Paper Board, Organic glass, Vases, Derma ﹡Model manufacturing
1) According to customers demands, provide relevant technical guidance. 2) Assist customers to design and make laser cutting solutions considering technical feasibility. 3) Provide equipment demonstration for customers to investigate, make samples and do test, etc.
1) 1 year warranty for laser metal cutting machine; 2) Offer lifelong repair; 3) Engineers available to service machinery overseas. 4) multi language service; 5) Offer 24 - hour technical support.
a. The warranty of machine is 12 months b. The warranty is dated from EX factory date c. During warranty, we will send the parts to you for repairing or replacing d. When the warranty is over, we will charge for the parts e. If there's any problem in the further, we will give you tech support by mail, msn, or skype to fix the problem

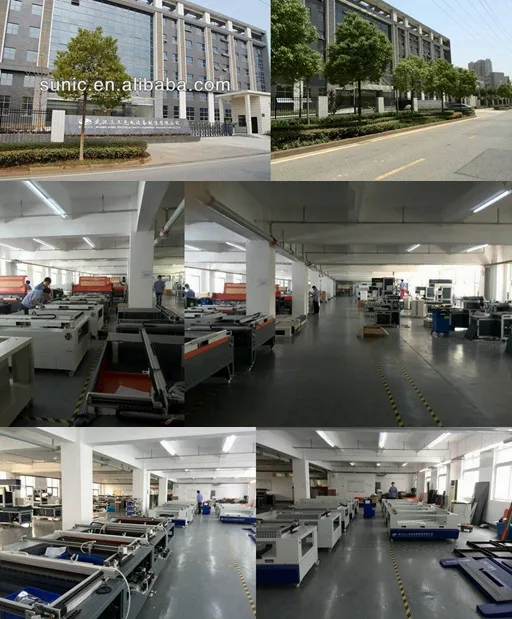

Company & Workshop
Packing & Delivery
1. Whole machine shrink wrap packaging
2. Pearl wool packaging, then shrink wrap packaging again.
3. Fumigated wooden box or plywood box packing
4. Printing Shipping Marks on the package ( As customer requires)
5. Delivering the machines to the sea port
6. Transportation by sea or air to customers
Q: Are you trading company or manufacturer ?
A: We are factory, and has been in the laser field for 20 years.
Q: How long is your delivery time?
A: Generally it is 3-7 days. It also depends on the quantity and machine model.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers pay the courier cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
