Quick Details

  • Application: Laser Cutting
  • Condition: New
  • Laser Type: CO2, Co2 laser tube
  • Applicable Material: Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
  • Cutting Thickness: Max 30mm (up to materials)
  • Cutting Area: 1250*900mm
  • Cutting Speed: 0-800mm/s
  • CNC or Not: Yes
  • Cooling Mode: Water Cooling
  • Control Software: RDCAM
  • Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: Argus
  • Model Number: SCU1290
  • Certification: CE, ISO, TUV
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Laser Power: 80w/100w/130w/150w/280w
  • Control system: RDCAM
  • Motor Drive: Step Motor Drive System/Servo Motor Drive System
  • Cooling Way: Water Cooling
  • Transmission Way: Belt Transmission/Ball Screw Transmission
  • Worktable: Aluminum Strip/Honeycomb Worktable
  • Accuracy: 0.025mm
  • Connecting Way: USB,network port
  • Guarantee time: 1 year

Packaging & Delivery

Packaging Details Product Name: Co2 Laser Cutting Engraving Machine SCU1290
Packing Method: In standard plywood crates packing for export
Packing Dimension: 2185*1465*1260mm
N.W.: 350KG
G.W.: 460KG
Cubage: 4.03CBM
Delivery Time Within 7 working days
Product Description

20 Years' Experience for Laser Equipment
2017 Argus Hot Sale Product

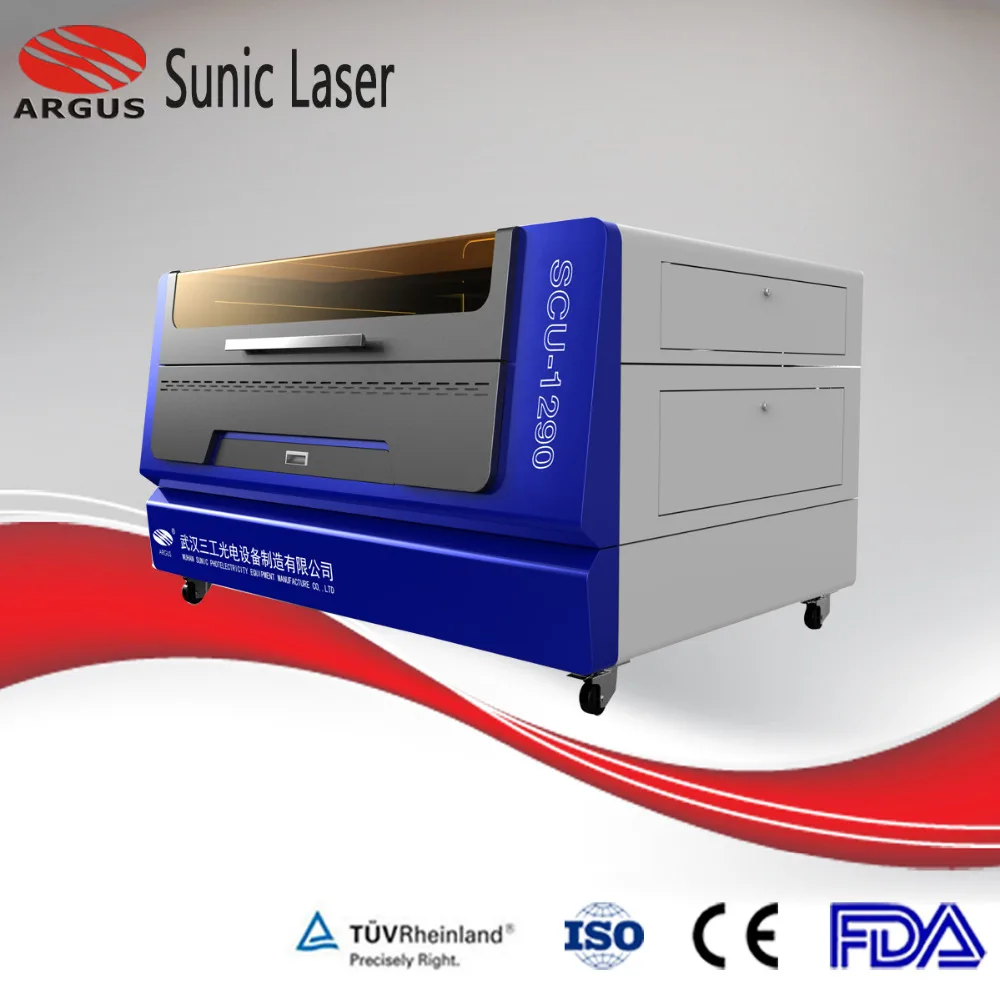

Co2 Laser Cutting Engraving Machine SCU1290



Main Features of Co2 Laser Cutting Engraving Machine SCU1290:

1.Newly designed motion control system, ensure high speed & precision cutting/engraving.
2. Europe standard style & modular design, easy for daily maintenance.
3. Electric lift workbench easy for processing sheets of diverse thickness. Adjustable.
4. Large viewing door with LED light.
5. R.F. metal laser tube available, lifespan expected about 40000 hours.
6. Imported II-VI focus lens, steady laser output.
7. Strong machine frame, ensuring stable performance during high speed cutting/engraving.
8. Humanized design workbench, handy material recycling drawer.
9. Providing global after-sale-service.


Technical Parameters of Co2 Laser Cutting Engraving Machine SCU1290:

Specifications
Technical Parameters
Working Platform Size
1250x900mm
Laser Power
100W, 130W, 150W, 280W, 300W
Controlling System
RD
Software
RDCAM(256MB)
Drive
Stepper Motor Drive System/Servo Motor Drive System
Transmission Way
Belt Transmission/Ball Screw Transmission
Support Format
PLT, BMP, DXF, T100, etc/ Win7 System
Computer Interface
Standard Printer Port and USB Port
Cutting Speed
≤500mm/s
Repeated Accuracy
≤±0.025mm
Min.Cutting Character
0.1~1mm
Max.Cutting Depth
30mm ( up to materials )
Cooling Ways
Circulation of Water Cooling
Working Temperature
0~35℃
Working Humidity
5~95%
Working Power
220V/50Hz/3kVA(As Customized)
Worktable
Aluminum Strip Worktable/Honeycomb Worktable
Up & Down Table
15cm adjustable, or customized
Safety
Red Indication, Huff Protection, Emergency Switch etc
Package
Standard Crate for Export
The Machine Includes
Air Pump, Water Chiller, Exhausting Fan & Exhausting Pipes


Advantage of Co2 Laser Cutting Engraving Machine SCU1290:

1)  Case: our machine case is very strong, which is equipped with high quality stainless steel.
2)  Red light indication is installed at the first reflectors, keep it coaxial with laser beam for better adjusting the laser, and ensure the high precision cutting & engraving indication.
3)  Motion Structure(X-Gantry): It is designed and made by module, thus running is more steady.
4)  Ultra motor: In order to improve the cutting precision, we have add more function on motor to keep belt better match.
5)  Installation: As a manufacturer in laser industry for nearly 20 years, all installation is well done by our engineers with more than 5 years' experience.
6)  RD software have strong editing function and support most kinds of format: AI, PLT, BMP, DXF, DST, T100, etc.

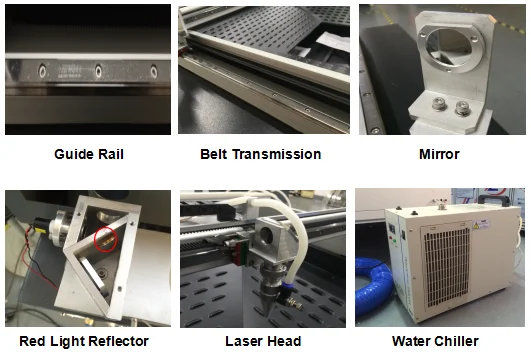

Main Components

Optional Device:
1) Rotary Device: Mainly used for processing some circle materials, e.g. cups
2) Honeycomb Worktable: Mainly used for processing some soft materials, e.g. garment, paper, etc.
3) Gear Ratio Structure: Mainly for smooth and high accuracy cutting.
4) Ball Screw Transmission: High positioning accuracy, high drive efficiency
5) Servo Motor Drive System: With high accuracy, it runs smoothly in low speed, suitable for occasions with high speed requirement.
6) Automatic Focus Laser Head: Mainly used for processing metal materials, e.g. stainless steel, carbon steel, etc.

Samples

Acrylic Engraving & Cutting

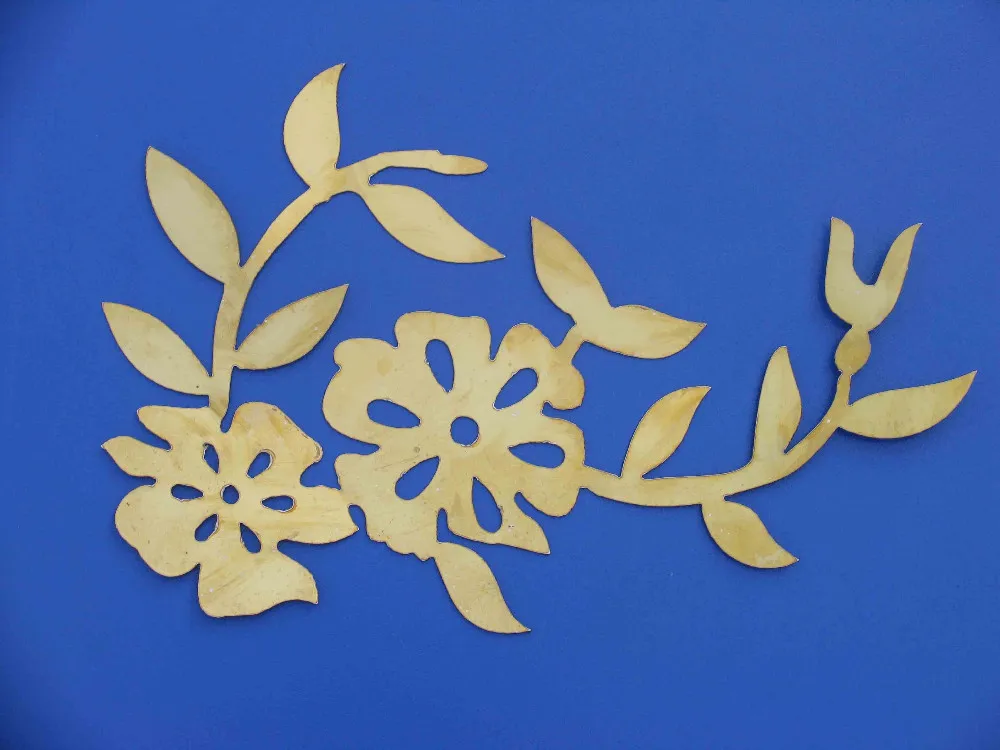

Plywood Engraving & Cutting

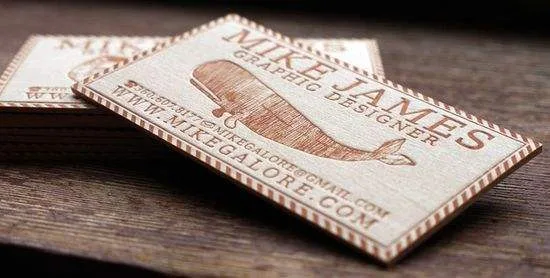

Wood Engraving & Cutting

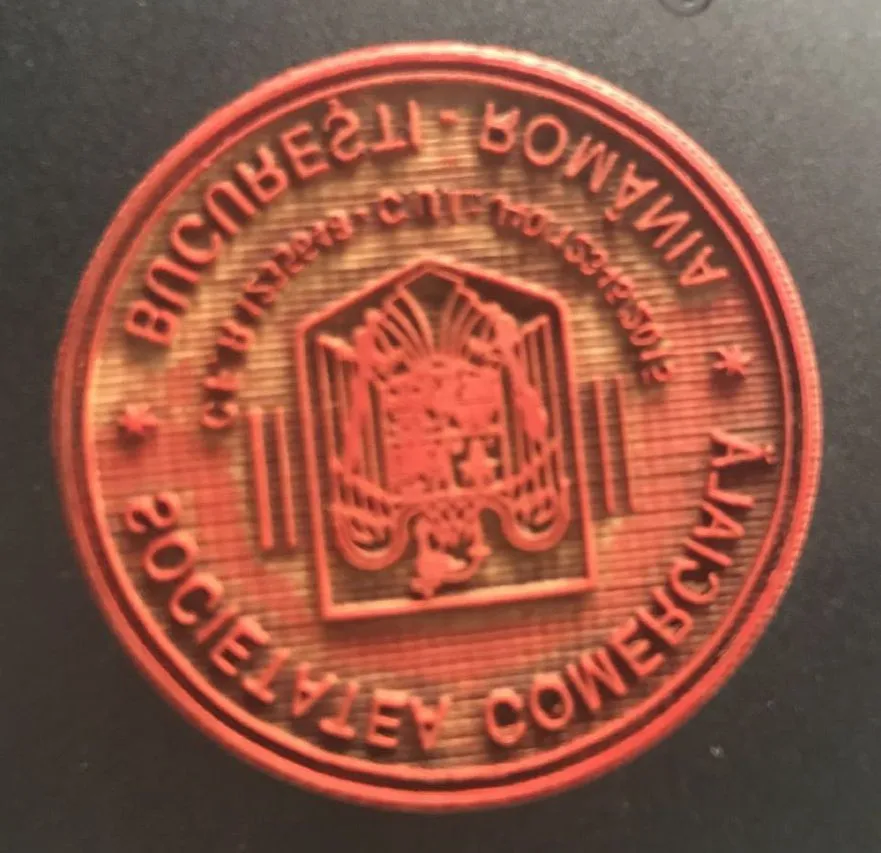

Rubber Engraving & Cutting

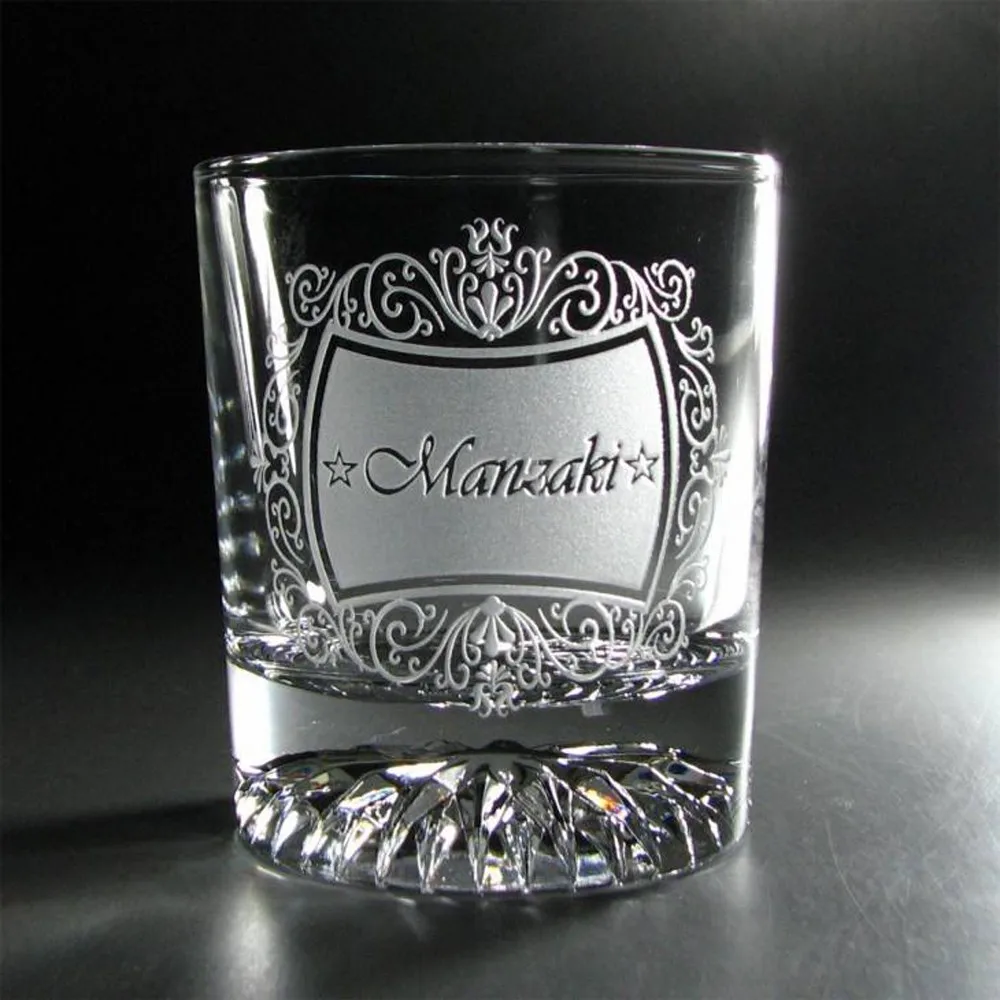

Glass Engraving & Cutting

MDF Engraving & Cutting

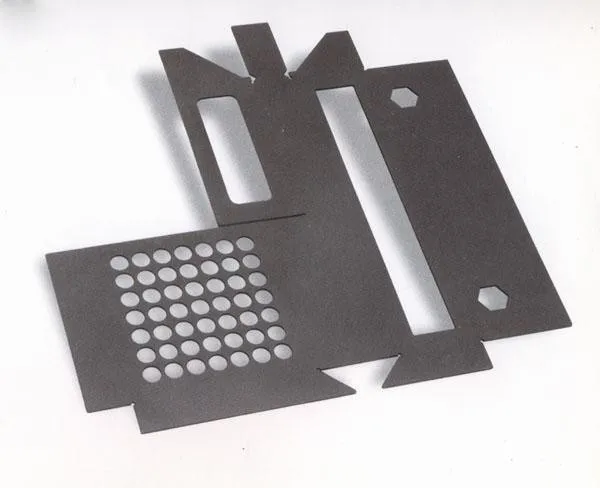

Galvanized Steel Cutting

Carbon Steel Cutting

Metal Steel Cutting

Application Materials of Co2 Laser Cutting Engraving Machine SCU1290:

Metal Materials: Carbon Steel, Stainless Steel, Aluminum, Copper, Galvanized Steel, etc.

Non-Metal Materials: Acrylic, Wood, Leather, Paper, Plywood, ABS, Fabric, Glass, Cloth, Marble, Matte Board, Paper, Mylar, Pressboard, Rubber, Wood Venner, Plastic, etc.

Our Service

Pre-Sales Service

1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make laser engraving/cutting solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test, etc.

After-Sales Service

1) 1 year warranty for laser metal cutting machine;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support.


Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers’ country and do training for workers in customers’ target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.

Guarantee:
The guarantee period shall be 1 year counting from the date on which the commodity arrives at the port of destination.
1) One year free maintenance, lifelong caring.
2) Free technical consultant and software updating.
3) Customer Service responding in 12hours.
4) Continuous support with software and hardware after free maintenance.

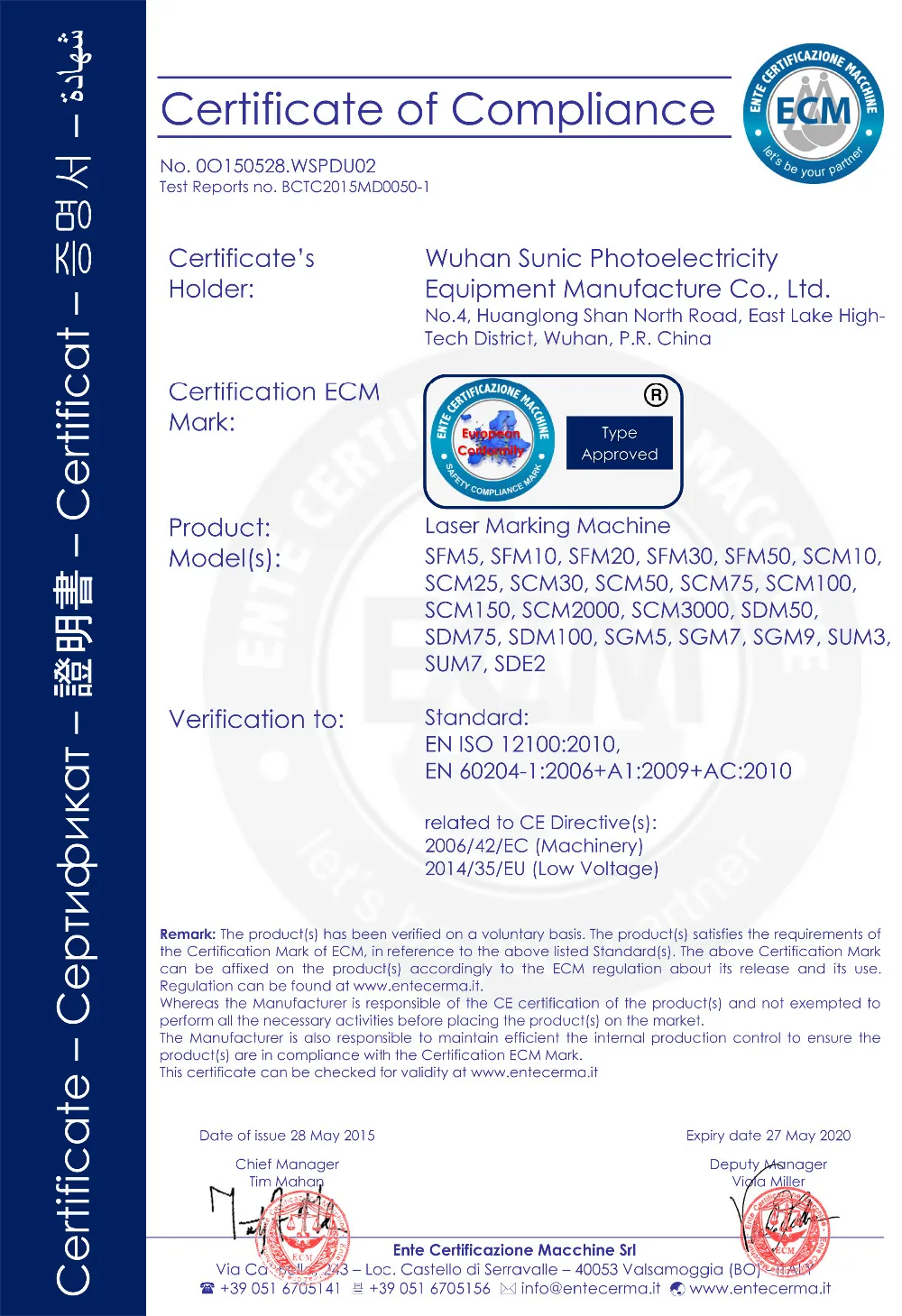

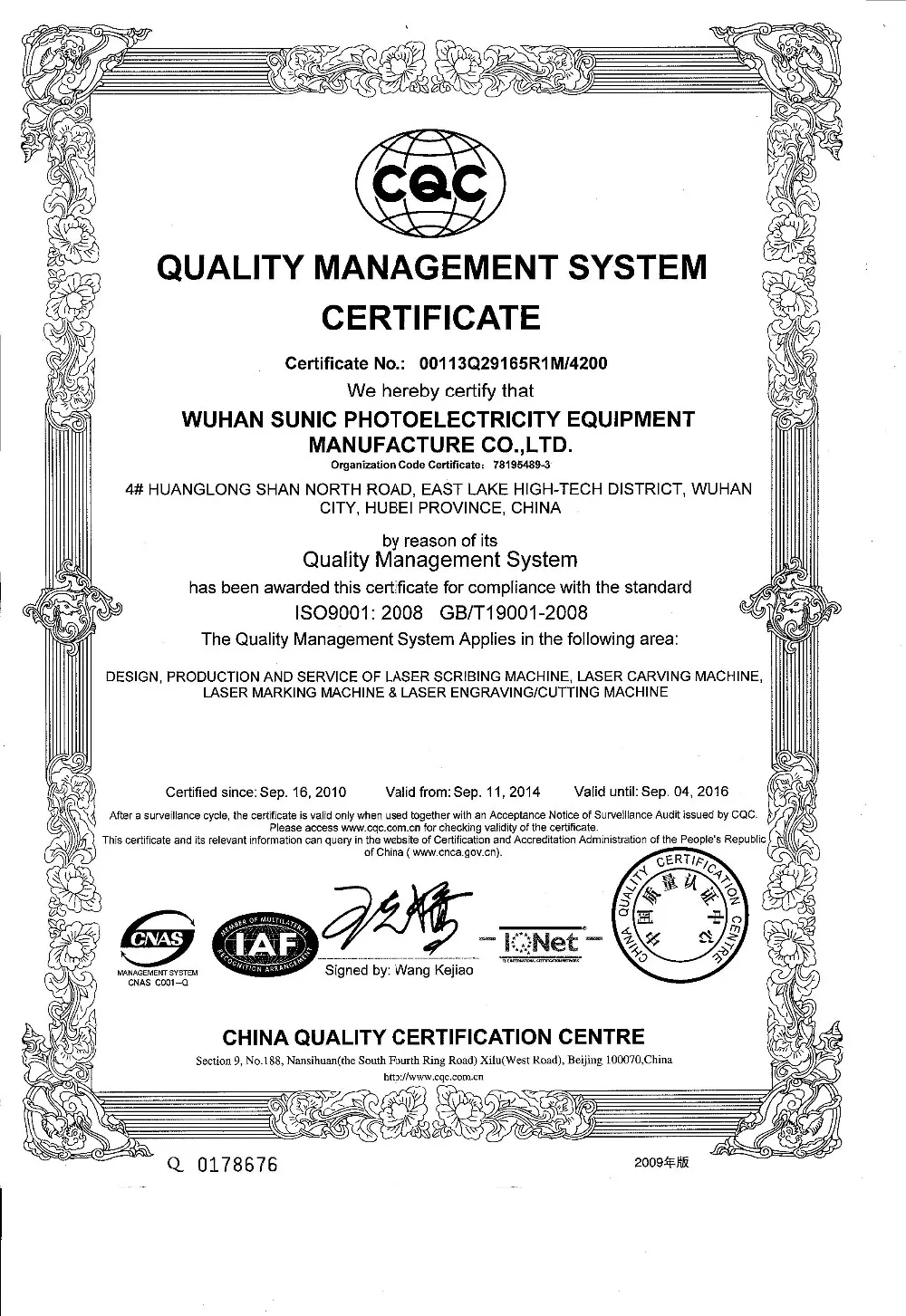

Certifications
Packing & Delivery

Product Name: Co2 Laser Cutting Engraving Machine SCU1290
Packing Method: In standard plywood crates packing for export
Packing Dimension: 2185*1465*1260mm
N.W.: 350KG
G.W.: 460KG
Cubage: 4.03CBM

FAQ

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q3. What is your sample policy?
A: We can supply the free sample, but the customers pay the courier cost.

Q4. Do you test all your goods before delivery?
A: Yes, we have the machines 100% tested before delivery.



Please feel free to contact me if you have any questions or inquiries.


Contact:      Bruce
Company:   Wuhan Sunic Photoelectricity Equipment Manufature Co., Ltd
Add:             4# Huanglong shan North Road, East Lake High-Tech District, Wuhan City, China
Web:            www.arguslaser.net
Skype:         brucechen179
Mobile:        0086-15671685305
