Quick Details

  • Application: Laser Marking
  • Condition: New
  • Laser Type: CO2
  • CNC or Not: No
  • Cooling Mode: Water Cooling
  • Control Software: from Argus
  • Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
  • Working Accuracy: 0.01MM
  • Place of Origin: Hubei, China (Mainland)
  • Brand Name: ARGUS, OEM
  • Model Number: SCM3000
  • Power(W): 150W 180W 275W
  • Certification: CE, ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • co2 laser marking name: dynamic co2 laser marking machine
  • co2 laser marking Certification: CE ISO TUV
  • co2 laser marking Application: Leather Processing Light Guide Plate Marking Acrylic Wood
  • co2 laser marking Function: Laser Machine for LGP Engraving,Dotting,
  • co2 laser marking working way: Dynamic CO2 laser marking machine
  • co2 laser marking working area: 800*800, to 1500*1500mm
  • co2 laser marking speed: 7000mm/s
  • co2 laser marking software: Compatible with all LGP Drawing Software and file formats
  • co2 laser marking laser source: Coherent Laser Tube or Rofin Laser Tube
  • Laser power: 150W 180W 275W CO2

Packaging & Delivery

Packaging Details: Wooden Case with Steel Belt Package

275w CO2 3D Dynamic Laser Marking Machine for cloth,marble,jade,glass,bamboo,wood,rubber,leather engraver



Product Description

  Product Show



CO2 Laser Marking System

As the high-tech product, Dynamic CO2 Laser Marking Machine adopts the technologies of Laser, Optics, Precision Machinery, Electronic technology, PC software technology and Cooling Project.

The machine adopts the 10.64um CO2 laser source, which can satisfy the application in different industries such as marking, cutting, engraving, color removal, paint processing, material micro-processing and etc. The equipment adopts Aluminum frame structure, and the latest motor driving in the whole worktable platform to ensure the stable qualities. The adjustment of laser optical path is droven by two galvanometer motors(XY), and the third axis is droven by pre-scanning gathered system to make a wildly adjustment for focus distance.



Equipment Performance

Dynamic Co2 laser marking machine adopts the technology of pre-dynamic focusing, to display the thinner laser spot, faster marking speed and better effects. Viable with large scale engraving or cutting. Advantages as follow:

1, Compared with traidtional post-dynamic focusing marking machine, it's no necessary for Dynamic Co2 laser marking machine to replace the different flat-field lenses to get different marking area. Thinner laser spot as well.

2, Fully enclosed laser optical system, no adjustment or maintenance needed, working at once after installation viable.

3, Original imported RF laser tube with high laser power, excellent laser spot, stable laser generation and lifetime of more than 20000h.

4, High precision and speed performance with cutting&engraving working, 20% higher efficiency than similar models.

5, Professional industrial thermostatic circulation of water cooling system ensures more stable running and lower consumption.

6, Strict multiply protection control system can be applied in wild operation temperature, to make sure the stable continuous working of 24h of laser marking system.

7, Application under Windows interface, AutoCAD, CorelDraw, Photoshop compatible, PLT, DXF, BMP ect supportive.

8, Especially applies RBI marking with light guild plate or acrylic, and cutting&engraving with leathers and footwears.



Applicable Fields

Suitable for almost all non-metal materials, including leather, rubber, wood board, bamboo products, organic glass, ceramic tile, plastic, marble, jade, crystal, cloth etc.



Wildly used in industries of arts&crafts, bamboo and wood products, advertising decoration, clothing, plate making for printing on leather, decoration and architectural model.


Special Application in LGP

Application Materail

Acrylic for LED Light Guiding Plate(LGP)

Application Industry

LCD, FPD, LED Backlight, LED Flat Lamp, LED Ultrathin Crystal Lamp, Crystal Photo Frame, Outdoor&Indoor Signs, Lighting Box, X-ray Reading Box

Equipment Features

1, 3D Dynamic focus adjustment with large engraving worktable to present fast process speed on different materials with various thickness

2, Sunic Laser specialliy designed scanning technology display high precision engraving performance and faster processing speed

3, Powerful software is capable for any drawing or halfone format, and especially suitable for continuous production for large quantities and various designs.

4, Specially designed software for LGP Laser dotting.

5, Automatic generation of dotting design

6, Automatic gradual changes with dots sizes and distances

7, Integrated function of dotting design, vector drawing, marking, scribing and cutting

8, Support different light Input directions and styles

9, Support informal LGP design and dotting Works

Samples

  Dynamic CO2 laser marking machine



Special Application in Clothing

Application Material

Clothing materials like Jeans, Fabric, Leather, Cotton, Linen, Silk and etc.

Application Industry

Industrial or DIY production of Jeans, T-shirts, Shoes, Shirts, Underwear, Bags, Lace Caving, Leather Engraving, Jeans Logo Engraving, Fabric Cutting and Engraving and etc.

Samples

 Dynamic CO2 laser marking machine



Special Application in Invitation Card

Application Material

Paper.

Application Industry

Industrial manufacture of Invitation Card, Wedding Card, Greeting Card, Birthday Card.

Samples

    Dynamic CO2 laser marking machine

Excellent Component

      Dynamic CO2 laser marking machine

specification
Technical Parameter

Model

SCM2000

SCM2000-S

SCM3000

Laser Source Model

Coherent E150(USA)

Rofin OEM 20i(Germany)

Galvanometer Scanner

CTI Scanner(USA)

Laser Wavelength

CO2 Laser 10.64μm

Laser Power

180W

275W

Max.Marking Area

800x800mm

800x1200mm

1500x1500mm

CFR Quotation

$34,000/set

$52,000/set

Worktable Type

Aluminum Worktable

6.6mm Marble Worktable

Marking Speed

10000mm/s

Repetition Precision

0.01mm

Laser Frequency

20kHz~200kHz

Min.Letter Size

0.3mm

Power Consumption

4kW

7kW

LGP Dotting File

Automatic Generation

File Formats

PLT, DXP, BMP, JPG etc

Output Compatibility

AutoCAD, Photoshop, CorelDRAW etc

Power Supply

AC220V/25A/50Hz

Cooling Way

Circulation of Water Cooling



samples



Marking Leathers

Marking ABS&Acrylic

Marking Wood

  Marking Light Guide Plate

      Dynamic CO2 laser marking machine

service

Sunic Laser has always been committed with the service idea of Customer-centric, supply Installation, Adjustment, Training and Maintenance in pre-sales and after-sales service.


Pre-sales Service
Before signing contracts, Sunic Laser supply customers service of production plan, technical consultant, sample trail and equipment suggestion and etc.



Afer-sale Service
1. Installation and Debugging
Equipments will be delivered to the target place in time according to customers’ requirement. Our professional Engineer can make sure Installation and debugging processes be settled down in 1~2 days, as well as a clear, tidy and orderly field.

2. Training
Sunic Laser supply free technical training for all customers all over the world until the workers from buyer can operate the
machine normally and individually. Mainly training are as follow:
1, Training for Control software operation
2, Training for normatively turning on/off operation of the machine
3, Instruction of technical parameters, as well as their setting ranges
4, Basic daily cleaning and maintenance for the machine
5, Solutions for common hardware problems
6, Training for other questions and technical suggestions during daily production
Training can be processed in the following ways:
    1,Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
    2, We can send engineers to customers’ country and do training for workers in customers’ target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
    3, Remote training through Internet tools like Team-viewer, Skype and other instant communication softwares.



Guarantee

The guarantee period shall be 1 year counting from the date on which the commodity arrives at the port of destination. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.

Equipment Maintenance
1, One year free maintenance, lifelong caring.
2, Free technical consultant and software updating.
3, Customer Service responding in 12hours.
4, Continuous support with software and hardware after free maintenance.

      Dynamic CO2 laser marking machine

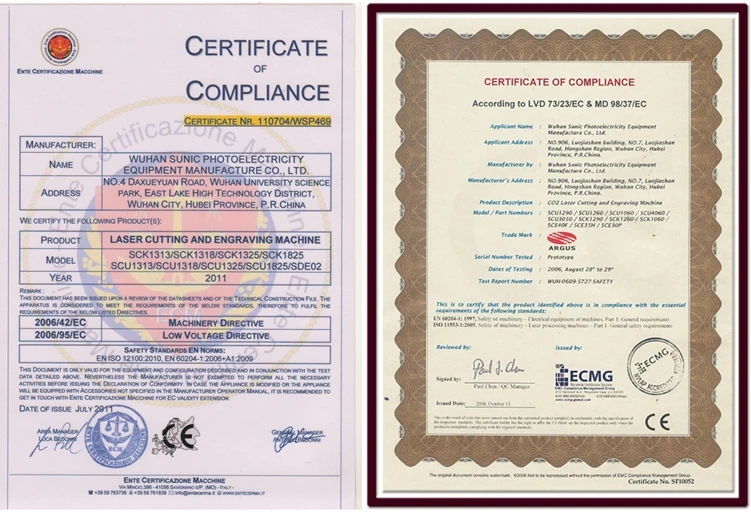

Certifications

      Dynamic CO2 laser marking machine

Company Information

 Company Imformation

Sunic Laser offers different type (Co2, YAG, Fiber) of laser machines and provides a comprehensive range of laser cutting, laser engraving, laser marking and laser welding systems. Whether you need a cost-effective machine or a more sophisticated laser solution, from the economical models to the large format automated laser processing systems, even customized laser systems, Sunic Laser has the laser solutions that satisfy your requirements.

      Dynamic CO2 laser marking machine

Exhibition&Training



Every year, Sunic laser participate in many exhibitions for different fileds at domestic and overseas:



 1, Shanghai Int’l Ad & Sign Technology & Equipment Exhibition since 2005



 2, Canton Fair since 2005



 3,  SNEC PV Power Expo since 2005



 4, Intelligent Signs & LED Exhibition



 5, KOSIGN



  And other large exhibitions.

                 Welcome to visit our company!

Contact person:



Sunny Guo

Sales Engineer (International Dept.)

Wuhan Sunic Photoelectricity Equipment Manufature Co., Ltd

Add: 4# Huanglong shan North Road, East Lake High-Tech District, Wuhan City, China

Web: www.arguslaser.net

Phone/ Whatsapp/ Wechat: +86-15671685396

Skype: sunicsunny
